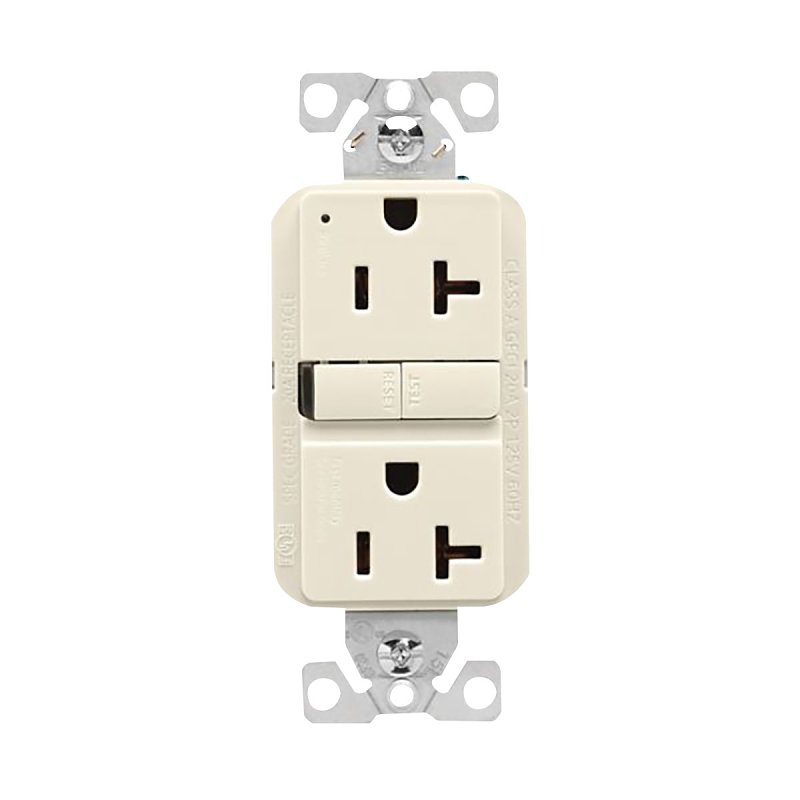

Eaton GF20LA GFCI Receptacle, 125 V, 20 A, NEMA: NEMA 5-20R, Back, Side Wiring, Light Almond

Eaton

$21.99~~$21.99~~

Color: Light Almond
Current Rating: 20 A
Dimensions: 4.19 in H x 1.69 in W
Grounding Type: Automatic
Material: Polycarbonate/Steel/Thermoplastic/PVC
Model #: GF20LA
UPC #: 032664012976
SKU: 7491855

Your shopping list will be used for pickup in-store

Product Details

Eaton GFCI Receptacle, Self-Test, 125 V, 20 A, 2 Pole, 10 kA Short Circuit, Grounding Type: Automatic, 3 Wires, 14 to 10 AWG Wire, Back, Side Wiring, NEMA 5-20R NEMA Rating, -35 to 66 deg C Operating, Polycarbonate/Steel/Thermoplastic/PVC, Light Almond, Dimensions: 4.19 in H x 1.69 in W

Key Features

Slimmer design for easy installation, leaving more room for wires in the box
Automatically self-tests periodically to ensure GFCI protection
GFCIs incorporate lock out functionality to protect against mis-wired line-load connections and GFCI circuitry damage
Wider button wells for easy test and reset
Intuitive LED status indicators for trip and end of life states
Clean, modern industrial design with reduced top housing markings and neutral text direction on buttons
Meets and exceeds 10 kA short circuit testing and underwriters laboratories
Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
External backwire clamps provide visual confirmation of secure termination
Line side terminals are backed out and staked for fast installation

Item Specifications

Color	Light Almond
Current Rating	20 A
Dimensions	4.19 in H x 1.69 in W
Grounding Type	Automatic
Material	Polycarbonate/Steel/Thermoplastic/PVC
Nema Rating	NEMA 5-20R
Number of Poles	2

Number Of Wires	3
Operating Temperature	-35 to 66 deg C
Short Circuit Current Rating	10 kA
Type	Self-Test
Voltage Rating	125 V
Wire Size	14 to 10 AWG
Wiring Type	Back Side
